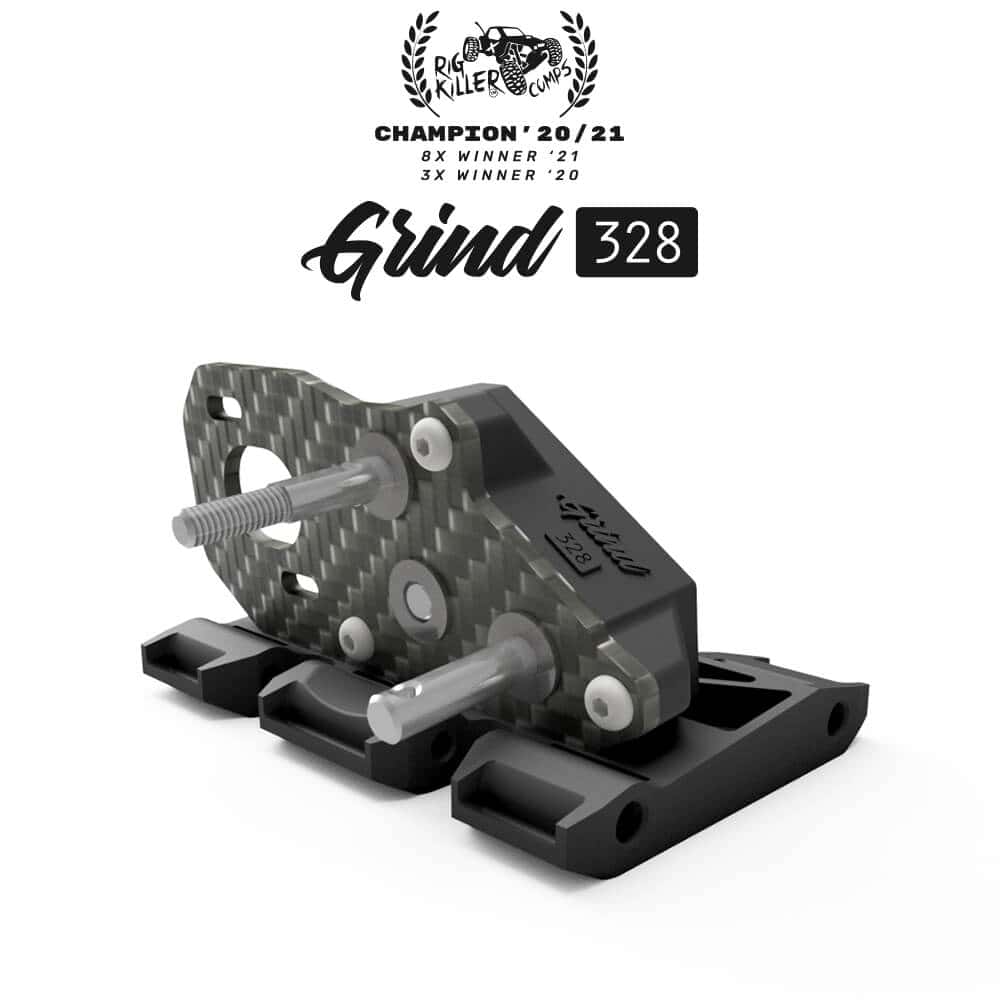

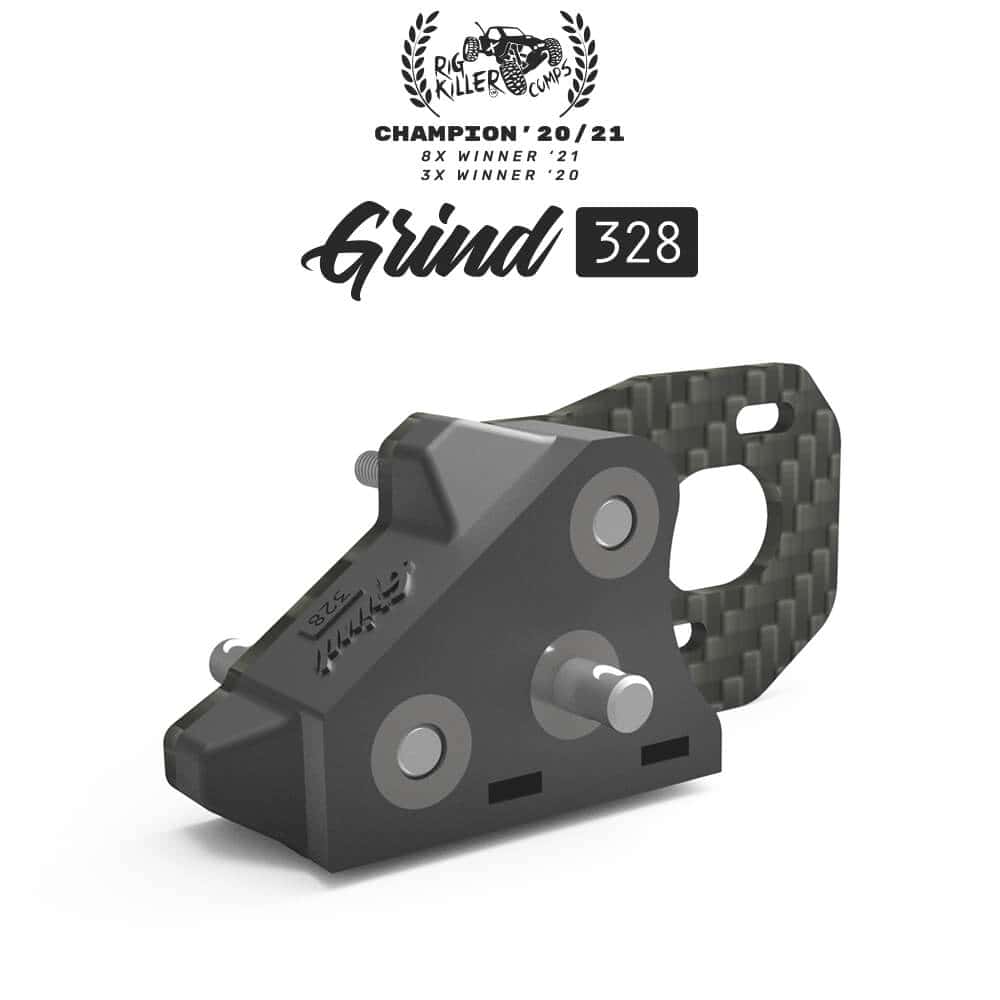

Grind™ 328 LCG OD Transmission

Additional information

Weight	0.2 kg
Brand	PROCRAWLER®
Product Line	Grind™
Transmission Type	328 LCG OD Transmission
Skid Plate	C23 V1/V2/V2R Grind 431/328™ Skid Plate, C1 V1 Grind™ 431/328 Skid Plate, FS1 V1 Grind™ 431/328 Skid Plate, 431/328 6º Re-Angled Skid Plate, 431/328 Straight Skid Plate
Motor Gears	No Pinion/Spur Gears
Overdrive	28% Front Overdrive
Front Drive Ratio	45.50:1 /w 9T/56T Pinion/Spur + AR44/AR45/Enduro Front & AR45P/F10/Capra Rear Axles Or Clone, 45.50:1 /w 9T/56T Pinion/Spur + AR44/AR45/Enduro Front & TRX-4 Rear Axles Or Clone
Rear Drive Ratio	59.72:1 /w 9T/56T Pinion/Spur + AR44/AR45/Enduro Front & TRX-4 Rear Axles Or Clone, 60.38:1 /w 9T/56T Pinion/Spur + AR44/AR45/Enduro Front & AR45P/F10/Capra Rear Axles Or Clone
Material	Hardened Chromoly, PA12, Stainless Steel, Toray® Premium High-Grade Graphite
Net Weight	56g, 77g /w skid
Length	18mm
Width	80mm
Height	35mm
Hardware	2x M3 Stainless Steel Square Nut, 2x M3x14 Flat Head Hex Socket Stainless Steel Screw, 3x M3x8 Button Head Hex Socket Stainless Steel Screw, 3x M4x3 Hex Socket Stainless Steel Set Screw
Included	1x Chosen Motor Gears (Optional), 1x Chosen Skid, 1x Grind™ 328 LCG OD Transmission, Stainless Steel Hardware
Delivered As	Assembled, Pre-Greased /w PROCRAWLER® G2 Waterproof Premium Graphite Silicone Grease
